SBL1 Sensor box for use in particularly harsh operating conditions containing one sensor and one signal conditioner with 4...20mA, 2-wire output |
Features
Description
The SBL1 is a
large, pressure die cast aluminium housing (IP65) with an
integrated sensor for uniaxial inclination measurements.
In addition to the sensor, the box contains a signal conditioner
with a 4...20mA, 2-wire output and a separate, highly stable
supply voltage for the actual sensor feeding off the current
loop. Furthermore, the signal conditioner includes an active low
pass filter, whose upper cut-off frequency / settling time can be
adjusted to suit the measurement task, an output stage with
current limitation, noise voltage filters and a diode bridge for
unipolar connection to the current loop. Interference signals
caused by unwanted ground currents are eliminated by electrically
isolating sensor and signal conditioner from the housing.
Unlike the SB2.., the SBL1 can accommodate larger inclinometers,
such as the NG.. series, that have a higher measuring accuracy. A
special electronic temperature compensation system can
significantly reduce the temperature sensitivity of the
implemented sensor.
The compact PG cable gland and compact housing size in
combination with the 2-wire connection enable the use of this
high quality measuring system in harsh operating conditions.
Application
The SBL1 is suited for taking precise inclination or acceleration measurements under harsh circumstances and returning a 4...20mA output signal. Areas of successful implementation include construction, mining (especially large open pit mining machinery), agricultural machinery, transportation and conveyor systems, ships, operation and automation technology as well as general mechanical engineering.
Technical Specifications
Terminals | 3 x 1.5mm2 (2 signal+1 earth) |
Cable fixing | PG21 (metal with integrated strain relief clamp) |
Measuring range, Resolution, etc. | dependent on implemented SEIKA sensor |
Degree of protection | IP65 |
Mounting orientation | any |
Measuring planes (N.., NB.. sensor) | 3 main housing planes |
Measuring plane (NG.. sensor) | parallel to housing bottom |
Terminal voltage | 10V ... 30V |
Minimum loop current | 2.5mA ... 3.5mA |
Maximum loop current | 22mA ... 26mA |
Output loop current | 4...20mA (12mA in sensor zero position) |
Adjustable variables | zero (12mA), amplification |
Maximum load resistance | 500 Ohm (at 24 Volt supply voltage) |
Operating temperature | -40...+85°C |
Options: special measuring ranges, calibration protocol

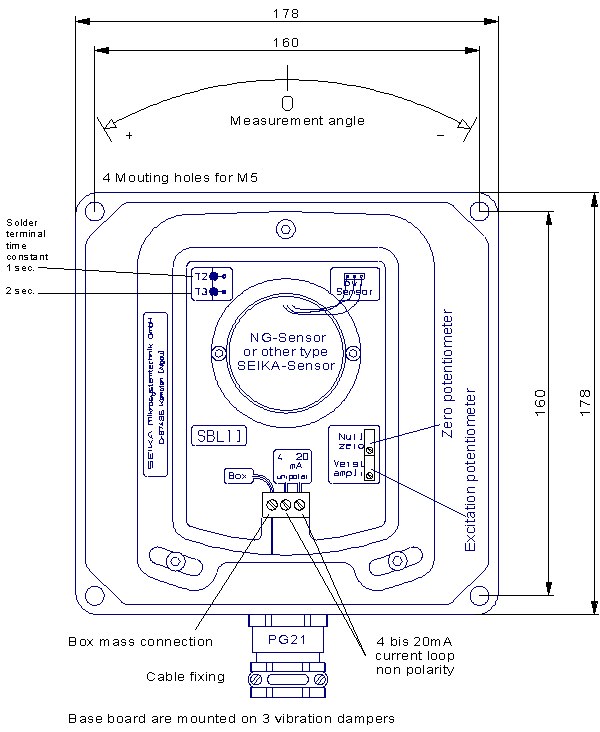

Dimensions (in mm)
Dimensions (in mm)
Since the supply voltage of the SBL1 feeds off the loop current (the SBL1 requires 3mA at the most), a voltage of 9V across the SBL1 terminals must be guaranteed to ensure correct functionality even for the maximum loop current of 24mA (maximum voltage drop across transmission line and load resistor). |
