| SBS1U Sensor box containing one highly sensitive servo inclinometer and one signal conditioner with ±5V output |
Features
Description

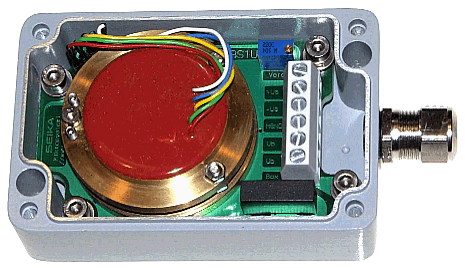

The SBS1U is a
pressure die cast aluminium sensor housing (IP65) with an
integrated sensor for highly sensitive, uniaxial acceleration or
inclination measurements.
As well as the sensor, the housing contains a signal conditioner
with 0...5V output and a separate, highly stable voltage supply.
Furthermore, the signal conditioner includes active low pass
filters for suppression of interference signals and transient
suppression for EMC guarantee. Interference signals caused by
unwanted ground currents are eliminated by electrically isolating
sensor and signal conditioner from the housing. The terminals
provide either two mutually inverse asymmetric 0...5V or one
symmetrical ±5V output voltages.
The compact metal cable gland and small housing size in
combination with the max.6-wire connection enable the use of this
high quality measuring system in harsh operating conditions.
Application
The SBS1U is suitable for applications requiring extremely precise inclination or acceleration measurements under harsh circumstances and returning of an analog signal output. Typical areas of successful application include stability monitoring of buildings and machinery and inclination monitoring on bridges, dams, towers, tunnels, slopes and structures in danger of collapse or earthquakes.
Technical Specifications
| Terminals | 6 x 1.5mm2 |
| Cable fixing | PG9, clamping range 6.5mm - 9.5mm |
| Measuring range | max. ±1 degree , smaller ranges optional |
| Resolution | 0.01 arc seconds = 48µm/km! |
| Degree of protection | IP65 |
| Mounting orientation | see drawing |
| Supply voltage optional | 12Volt oder 24Volt (±10%) |
| Operating current | max. 100mA |
| Normalized asymmetric output voltage range (GND -> Ua+) | 0.5V ... 4.5V |
| Normalized asymmetric output voltage range (GND -> Ua-) | 4.5V ... 0.5V |
| Normalized symmetric output voltage range (Ua- -> Ua+) | -4V ... 4V |
| Asymmetric zero output voltage (GND -> Ua+) | 2.5Volt |
| Asymmetric zero output voltage (GND -> Ua-) | 2.5Volt |
| Symmetric zero output voltage (Ua- -> Ua+) | 0 Volt |
| Output impedance | approx. 100 Ohm |
| Recommended cable | see drawing |
| Cable length taking voltage drop due to the operating current into account | any (e.g. 500m for 12V or 1km for 15V voltage supply and using the recommended or equivalent cable) |
| Capacitive output loading capacity | any |
| Resistive output loading capacity | greater than 100 kOhm |
| Output driver | operational amplifier TLC2274 |
| Adjustable variable | amplification |
| Signal rise time (to 98% of step input) | approx. 2 seconds |
| Step input response | PT2 |
| Operating temperature | -40°C ... +85°C |
| Mechanical angle adjustment range | ±2°(angle) |
Options: special measuring ranges, calibration record, partial silicon encapsulation, custom wiring
Dimensions (in mm) and Connections
|
Cable connections
Recommended cable: LIYY-LIYCY 4x0.5/56 (by Metrofunk Berlin) |
