SEIKA Sensorbox XB

XB...

Revised model

The XB housing is an extra-robust, pressure-, saltwater- and corrosion-proof stainless steel housing for one or two SEIKA sensors. It can contain the same sensor models and electronics like the SB-housing. It is available with a compact stainless steel cable gland and a Subconn cable gland for seawater and underwater usage

Features

extra robust, pressure-, saltwater- and corrosion-proof stainless steel housing
twist-free 4-point fastening of rigid 3.2mm thick base PCB
can be equipped with one or two SEIKA sensors, like the SB-housing
all SEIKA sensors fit the housing and can be installed in different directions of operation
sensors and sensor electronics electrically isolated from housing
individual calibration protocol
for electrical characteristics, please see the datasheets of the corresponding SB-sensorboxes, like SB1I, SB2I, SB1S, SB1U, SBS1U and SB360

Description

The XB.. is an extra robust, pressure-, saltwater- and corrosion-proof stainless steel housing with an integrated sensor or sensors and one of the sensor electronic systems described for the SB.. sensor casings.
The compact stainless steel cable gland and stainless steel housing size enable the use of this high quality measuring system in especially harsh operating conditions.

Application

The XB.. is suited for taking precise inclination or acceleration measurements under harsh circumstances and returning of a 0...5V or 4...20mA output signal. Areas of application include construction, mining, agricultural machinery, transportation and conveyor systems, ships, in aggressive fluids and in saltwater, in high pressure environments, operation and automation technology as well as general mechanical engineering.

Technical Specifications

Housing material	V4A (saltwater proof)
Cable gland	M16 x 1.5 cable gland, clamping range 6mm...10.5mm (V4A stainless steel with integrated strain relief) optional: Subconn®-connector (can be plugged underwater)
Pressure resistance	100 bar (10Mpa), 1000m water depth with Subconn® connector
Terminals	depending on the built-in board
Measuring range, resolution, etc.	depending on the integrated sensor(s)
Mounting position	any
Measuring planes (N.. sensor)	3 main housing planes
Measuring plane (NG.. sensor)	parallel to housing bottom
Measuring directions (B.., BD.. sensor)	in X,Y,Z coordinates of housing
Electrical values	please see datasheets of identically equipped SB sensor boxes
Operating temperature	-40...+85°C

Options

custom measuring ranges, calibration protocol, silicon encapsulation, custom wiring
Silicon potting
Subconn connector and cable for seawater and deep-sea applications
extented temperature range

Dimensions

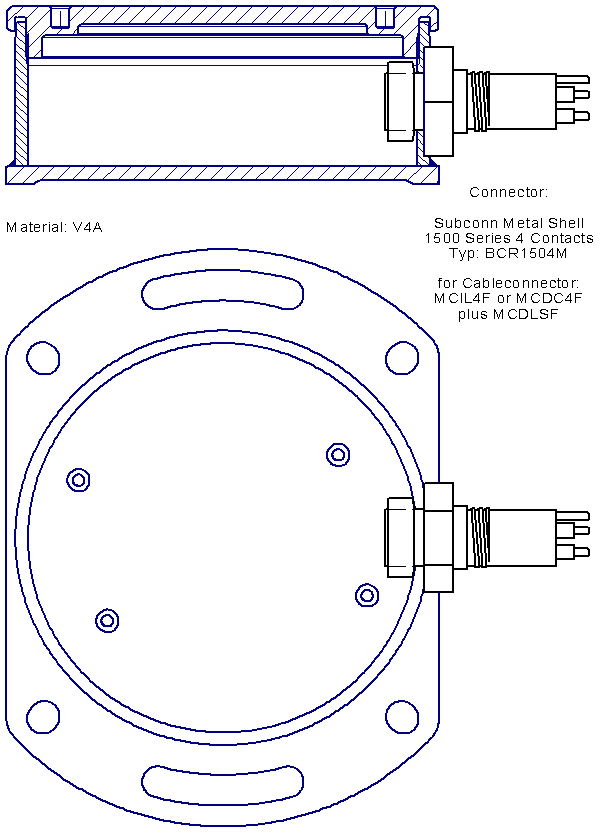

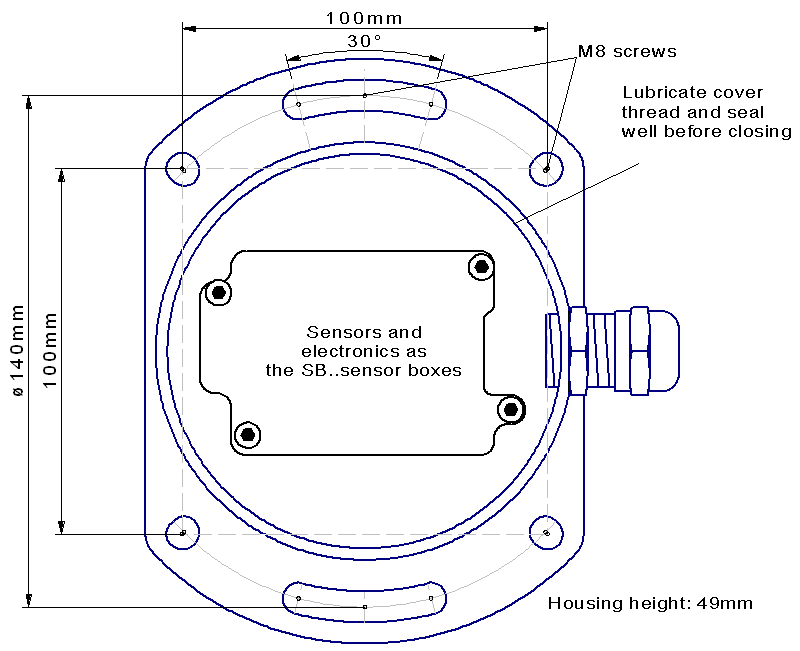

XB.. with underwater connector or cable gland

Nomenclature

XB1i = XB Housing including electronic and sensor like in the Sensorbox SB1I

XB2I = XB Housing including electronic and sensors like in the Sensorbox SB2I

XB1U = XB Housing including electronic and sensor like in the Sensorbox SB1U

XB1S = XB Housing including electronic and sensor like in the Sensorbox SB1

XBS1U = XB Housing including electronic and sensor like in the Sensorbox SBS1U

XB360 = XB Housing including electronic and sensor like in the Sensorbox SB360

Accessory - XBW1 (special screw-top opener)

typical use
