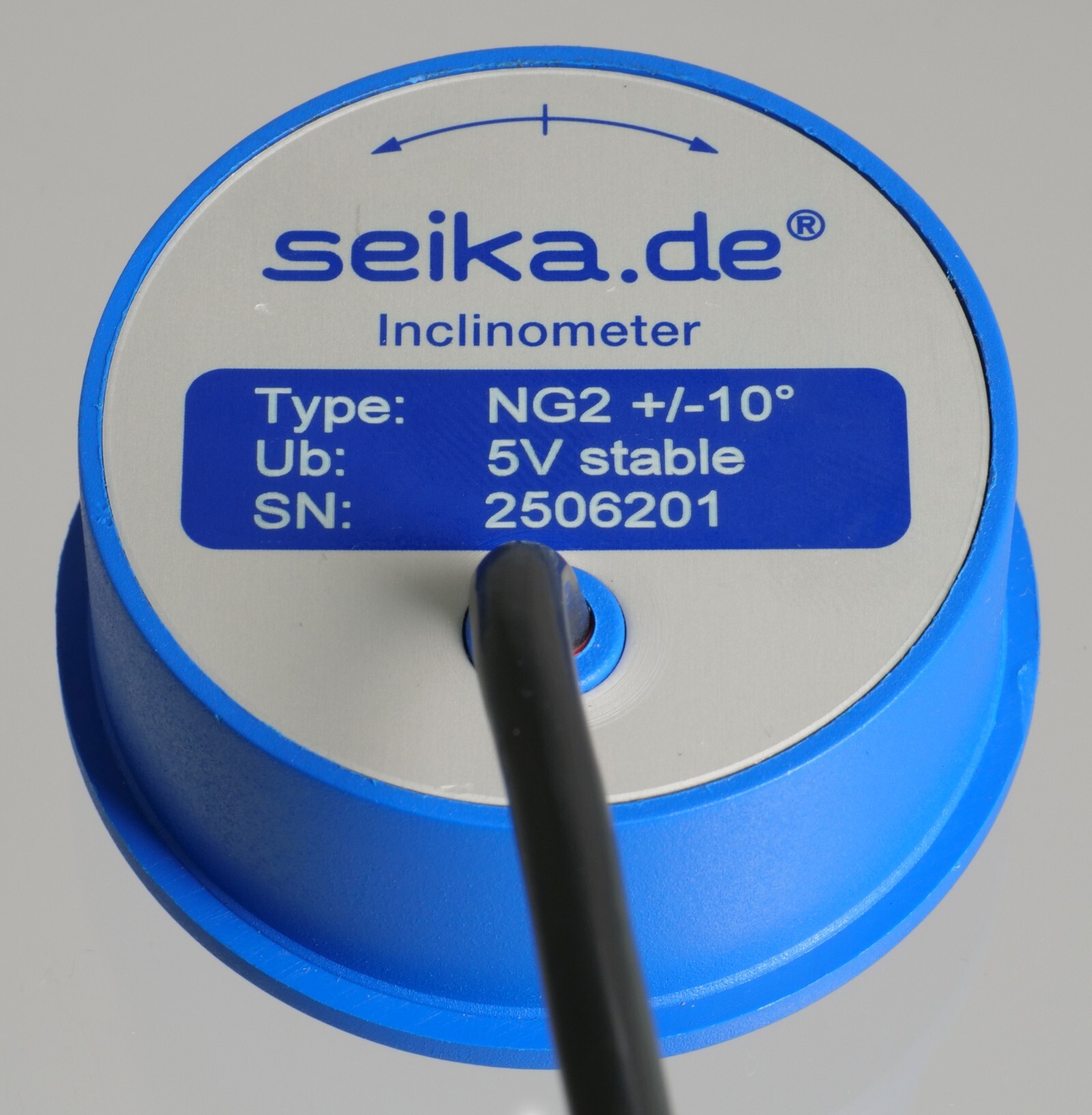

NG2, NG3, NG4
Inclinometers of high measuring accuracy for inclination measurement in the ranges of ±10, ±30 and ±80 degrees with a non-amplified, non-conditioned output signal
Features
- linear output characteristics
- high measurement accuracy
- minimal linearity deviation
- high long-term stability
- hysteresis free output signal
- minimal zero point drift
- integrated sensor electronics
- low power consumption
- different output signal options
- no interference by ambient electromagnetic fields
- shockproof as without moving mechanical parts
- hermetically sealed
- sensor electrically isolated within the housing from point of measurement – no ground connections

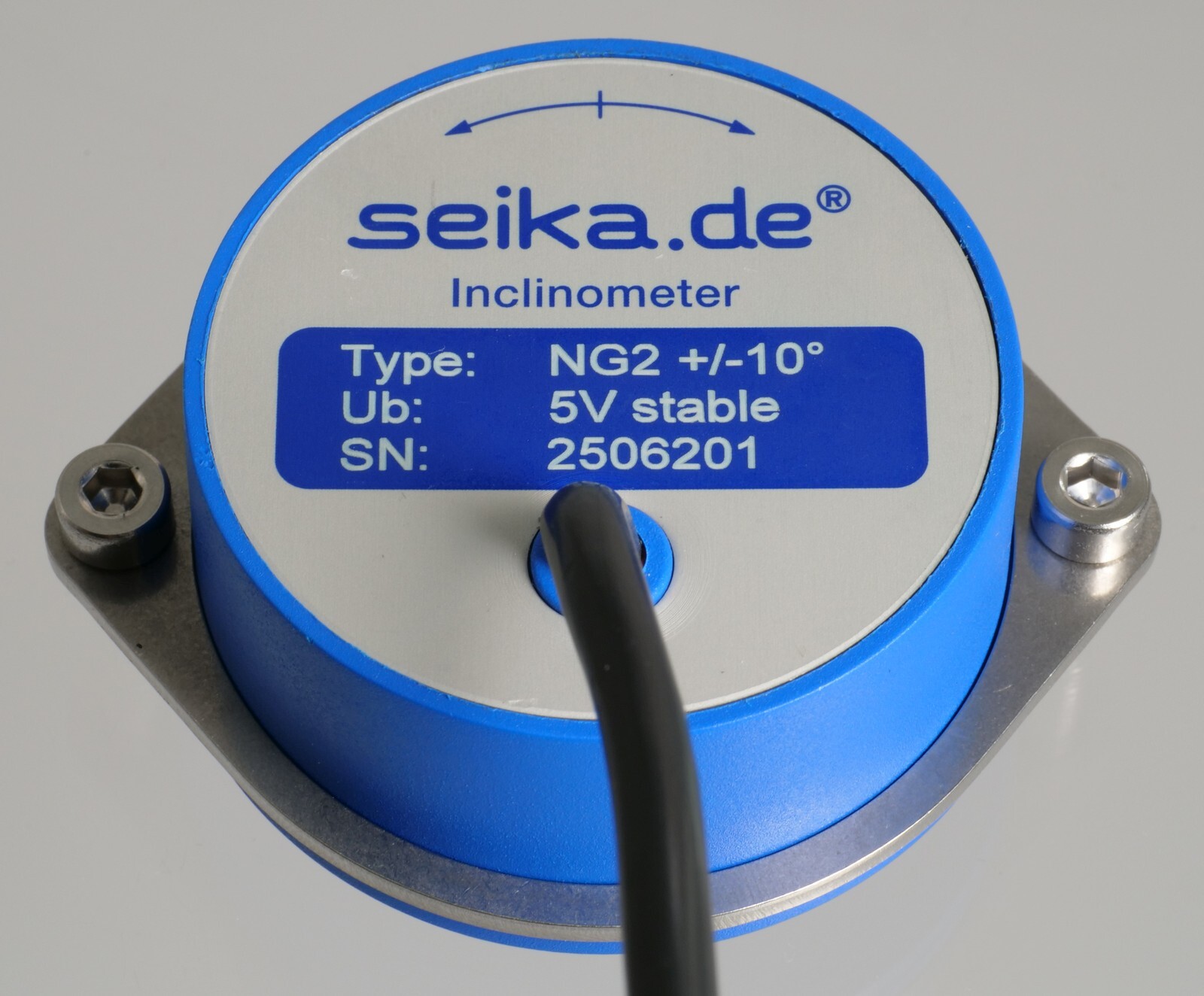

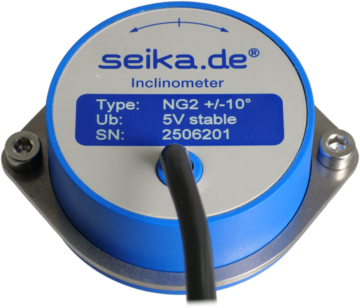

- zero point adjustable through 360° using clamping ring
Description
The NG2, NG3 and NG4 are capacitive, liquid based inclinometers with integrated sensor electronics. They are manufactured with an analog DC output and, optionally, a pulse-width modulated PWM signal. The sensor electronics require only minimal power and are in conjunction with the capacitive primary transformer characterized by high accuracy and high long-term stability. The measurement technique enables a linear relationship between the angle to be measured and the output signal. The determined angle is independent of the local gravitational acceleration, that means that no matter where the measurement is being taken, whether in Europe, Australia, on Mount Everest or on the moon, the inclination will be measured correctly anywhere.
Application
The inclinometers NG2, NG3 and NG4 are suitable for applications requiring high measurement accuracy with low linearity deviations and high long-term stability for measurement of relatively large inclination angles. Typical areas of application include construction, mining, vehicles, surveying equipment, aircraft, transportation and conveyor systems as well as ships.
Specifications
| Type | NG2 | NG3 | NG4 |
|---|
| Measuring range | ±10 degrees | ±30 degrees | ±80 degrees |
| Resolution | <0.001 degrees | <0.003 degrees | <0.01 degrees |
| Values at Ub = 5 Volt |
| Sensitivity | approx. 9 mV/degree | approx. 6,5 mV/degree | approx. 4 mV/degree |
| Type | NG2 |
|---|
| Measuring range | ±10 degrees |
| Resolution | <0.001 degrees |
| Values at Ub = 5 Volt |
| Sensitivity | approx. 9 mV/degree |
| Type | NG3 |
|---|
| Measuring range | ±30 degrees |
| Resolution | <0.003 degrees |
| Values at Ub = 5 Volt |
| Sensitivity | approx. 6,5 mV/degree |
| Type | NG4 |
|---|
| Measuring range | ±80 degrees |
| Resolution | <0.01 degrees |
| Values at Ub = 5 Volt |
| Sensitivity | approx. 4 mV/degree |
| Shared specifications
|
|---|
| Dimensions | see dimension drawing |
| Linearity deviation | <0.1% of measuring range |
| Transverse sensitivity | <0.5% at 45° tilt [TBD] |
| Settling time | approx. 0.3 seconds |
| Nominal supply voltage (regulated externally) | UbN = 5 Volt |
| Permissible supply voltage range Ub | 3V ... 6V |
| Degree of protection | IP65 |
| Operating temperature | -40°C ... +85°C |
| Storage temperature | -45°C ... +90°C |
| Weight (without clamping ring or cable) | approx. 111g |
| Electrical connection | 0.5m shielded cable Ø4.6mm |
| Mechanical overload resistance | 10 000 g |
| Values at Ub = 5 Volt |
| Zero offset | 2.5±0.1 V - generally: 0.5Ub±4% |
| Current drawn | approx. 1mA |
| Temperature drift of sensitivity | approx. -0.24%/K |
| Temperature drift of zero point | approx. 0.001(5)°/K |
| Output impedance | 10 kOhm |
- • Each sensor is calibrated after production. It is delivered with an individual calibration record that includes the precise offset and sensitivity values, the static characteristic curve and the linearity deviation curve.
Dimensions (in mm) and Connections
Caution! The operating voltage must not be reversed and must not exceed 6 volts.
